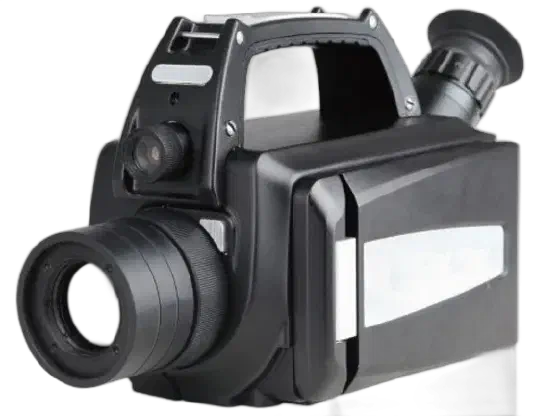

Visualising volatile organic compound (VOC) leaks takes an optical gas imaging camera with a cooled detector working in the narrow 3.2-3.4 µm band and enough sensitivity for small leaks. The VOC-300 uses a cooled 320 × 256 MCT FPA detector in that band, with NETD ≤ 10 mK at 30 °C, which makes the gas cloud visible on a 4.3 or 5-inch touchscreen and a 1024 × 768 OLED viewfinder; the same camera measures temperatures from −20 °C to 410 °C with ±2 °C or ±2 % of reading.
- Ergonomic for comfortable operation
- Record and report findings efficiently
- Superior gas visualization and quantification
- Detector material-MCT
- Optional lens
- Infrared and gas detection, dual function
VOC-300 key data
- Detector: cooled 320 × 256 MCT FPA, 3.2-3.4 µm band and thermal sensitivity (NETD) ≤ 10 mK at 30 °C.
- Optics: 18° × 14° standard lens (30 mm, f/1.2, 0.82 mrad spatial resolution) and optional 6°, 12° and 48° lenses; depth of field from 0.5 m to infinity and manual, auto or electric focus.
- Imaging: 25 Hz (50 Hz optional), 1024 × 768 OLED viewfinder and 4.3-inch touchscreen (480 × 272) or, as an option, 5-inch (800 × 480).
- Temperature measurement: gas object −20 °C to 60 °C and object −20 °C to 410 °C, with ±2 °C or ±2 % of reading accuracy; analysis with 20 points, 20 lines and 20 boxes.
- Recording and communication: 5 MP CMOS visible camera with high-power dual fill light, GPS, dual SD card slot (32 GB as standard), HDMI output, USB 2.0 and optional 4G/5G.
- In the field: lithium battery or 12 V DC, operation from −20 °C to 50 °C at ≤ 90 % RH, IP54, UNC 1/4"-20 tripod mount, 297 × 198 × 180 mm and 3.2 kg including battery.
Frequently asked questions
Which camera can see VOC leaks in an industrial plant?
An optical gas imaging camera with a cooled detector in the 3.2-3.4 µm band. The VOC-300 has a cooled 320 × 256 MCT detector with NETD ≤ 10 mK at 30 °C, which makes the gas cloud visible on screen so that small leaks can be located too.
Does it also work as a thermal imaging camera?
Yes. The VOC-300 is dual-function: besides gas detection it measures temperatures from −20 °C to 410 °C with ±2 °C or ±2 % of reading accuracy, with up to 20 points, 20 lines and 20 analysis boxes.
