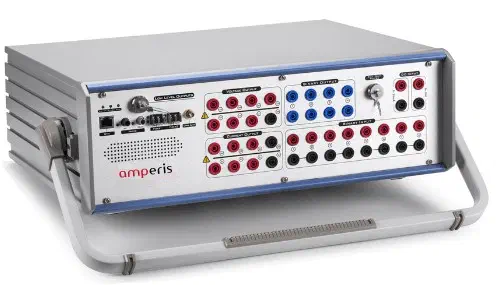

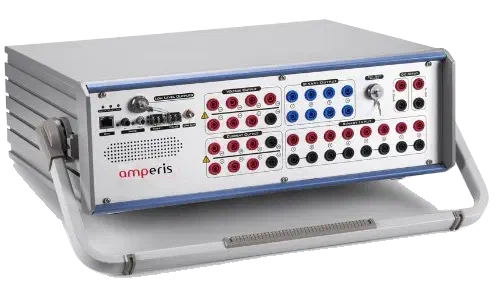

Testing high-burden electromechanical relays, numerical relays and IEC 61850 substation IEDs in the same campaign takes a test set with powerful, accurate analogue outputs and a fibre interface for the standard. The AK-30 injects up to 6×30 A (450 VA per channel), 3×60 A (850 VA) or 1×100 A (1200 VA) and up to 7×300 V, with a guaranteed voltage accuracy of 0.07 % of reading + 0.03 % of range; the AK-31 rises to 6×32 A and 4×310 V and adds two 100Base-FX fibre ports for IEC 61850, 13 low-level outputs and GPS, IRIG-B and IEEE 1588 synchronisation.

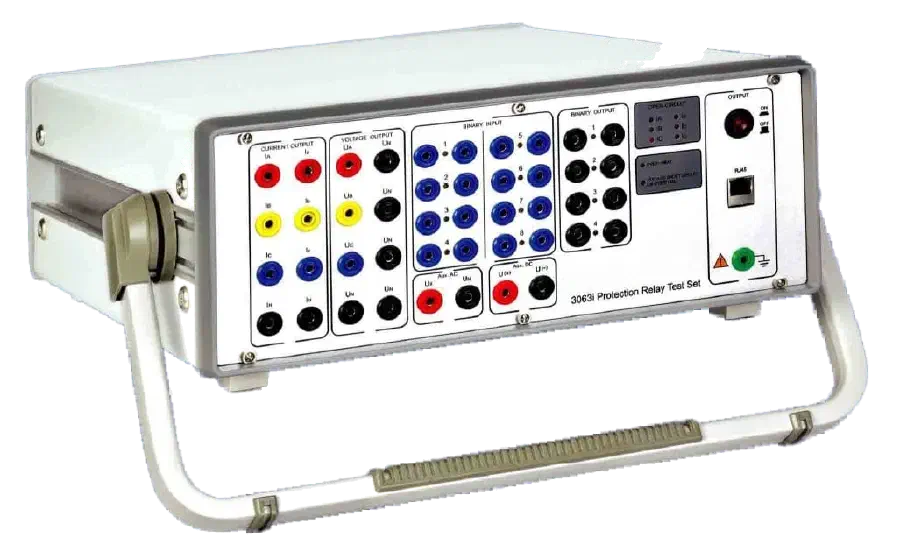

AK-30 key data
- Current: the AK3030i gives 3×0-30 A (450 VA per channel) and 1×0-90 A (1000 VA); the AK3063i and AK3066i, 6×0-30 A (450 VA), 3×0-60 A (850 VA) and 1×0-100 A (1200 VA); the AK-31 family, 6×0-32 A and 3×0-64 A. DC: 3×0-20 A with 300 W per channel.
- Voltage: AK-30 with 4×0-300 V (7×0-300 V on the AK3066i), 2×0-600 V phase to phase and 3×0-300 V DC; AK-31 with 4×0-310 V at 124 VA (7×0-310 V at 90 VA on the AK3166i), 2×0-620 V phase to phase and 3×0-350 V DC.
- Accuracy: AC voltage < 0.07 % rd + 0.03 % rg guaranteed (0.03 % + 0.01 % typical), AC current < 0.15 % rd + 0.05 % rg guaranteed (0.05 % + 0.02 % typical), distortion < 0.1 % and 1 mV / 1 mA resolution.
- Frequency and phase: the AK-30 generates 5 to 1000 Hz with < 1 ppm between 5 and 65 Hz; the AK-31, DC to 1 kHz (3 kHz transient) with ±1 ppm; 0.001 Hz resolution and phase from −360° to +360° with 0.001° resolution and < 0.1° guaranteed accuracy.
- IEC 61850 and synchronisation (AK-31): 2 100Base-FX fibre ports with LC connector, 1310 nm and over 1 km reach, optional SV and GOOSE modules, 13 low-level outputs of 0-8 V AC and GPS (SMA antenna), IRIG-B, FT3 and IEEE 1588 synchronisation.
- Inputs, outputs and battery: the AK-30 has 8 pairs of 0-400 V DC binary inputs with < 0.1 ms resolution, 4 pairs of 300 V AC / 4 A relay outputs, GPS with SMA antenna and a 0-300 V / 120 W battery simulator (0-350 V / 140 W on the AK-31).
- Software: AC/DC, ramping, overcurrent, 8-state sequence, distance, differential, reclose, synchroniser, COMTRADE playback and time characteristic modules, with RIO / XRIO import and export, for ANSI functions 21, 25, 27, 32, 46, 50/51, 59, 67/67N, 79, 81 and 87, among others.
- Instrument: 100-240 V AC supply (85-264 V AC or 125-350 V DC), 1500 VA max.; 10/100/1000 Mbit/s RJ45 Ethernet; AK-30 17.5 kg and 360 × 450 × 140 mm (0 °C to +55 °C); AK-31 18 kg and 368 × 375 × 164 mm (−10 °C to +55 °C).
Advantages
Universal, IEC 61850 ready
Compatible with the IEC 61850 standard, with independent voltage sources, current sources and a relay power simulator, plus a DC source that can be used at the same time.
Every generation of relay
It tests all generations and types of relays — current, voltage, frequency, power, impedance, harmonics and distance — including high-load electromechanical relays with very high power demand.
Protected and reliable
Complete self-protection and alarm indicators cover overload, overheating, short circuit, open circuit and incorrect connection.
Field-proven workflow
Current transformer wiring checks, GPS-triggered testing and PC control over RJ45 Ethernet, with RIO / XRIO import and export.
A model for the job
AK3030i, AK3063i and AK3066i cover 3×30 to 6×30 A and 450-850 VA; the AK-31 family adds AK3130i and AK3163i with 4×310 V / 124 VA outputs.
Applications
- Testing of current, voltage, frequency, power and impedance relays.
- Distance and harmonic protection, including high-load electromechanical relays.
- IEC 61850 substation testing.
- End-to-end testing with GPS synchronisation.
About the product
The AK-30 has 10 channels and the AK-31 has 13, both with a DC source usable at the same time; the voltage sources, current sources and relay power simulator are independent, controlled from a PC over RJ45 Ethernet with RIO / XRIO import and export in a robust, lightweight design.
Technical specifications
| Standard | Compatible with IEC 61850 |
| Channels | AK-30: 10 channels; AK-31: 13 channels |
| Current outputs | 3×30 to 6×30 A; 450-850 VA (model dependent) |
| Voltage outputs | 4×300 V/120 VA or 7×300 V/90 VA; 4×310 V/124 VA (AK-31) |
| DC source | Independent, usable simultaneously |
| Relays tested | Current, voltage, frequency, power, impedance, harmonics, distance |
| Protection | Overload, overheating, short/open circuit, wrong wiring |
| Synchronisation | GPS-triggered end-to-end testing |
| Connectivity | PC control over RJ45 Ethernet; RIO / XRIO import/export |
| Models | AK3030i / AK3063i / AK3066i; AK3130i / AK3163i / AK3166i |
| AC accuracy (guaranteed) | Voltage < 0.07 % rd + 0.03 % rg; current < 0.15 % rd + 0.05 % rg; phase < 0.1° |
| IEC 61850 and synchronisation (AK-31) | 2 × 100Base-FX LC, 1310 nm, > 1 km; GPS, IRIG-B, FT3, IEEE 1588 |
| Weight and dimensions | AK-30: 17.5 kg, 360 × 450 × 140 mm; AK-31: 18 kg, 368 × 375 × 164 mm |
Frequently asked questions
Which protection functions can the AK-30 test?
The AK-30 and AK-31 families test, among others, ANSI functions 21 (distance), 25 (synchronism check), 27 and 59 (under- and overvoltage), 32 (directional power), 46 (negative sequence), 50/51 (overcurrent), 67/67N (directional), 79 (autoreclosing), 81 (frequency) and 87 (differential), as well as IEC 61850 IEDs and merging units.
How much current can the AK-30 deliver on a single phase?
Up to 1×100 A at 1200 VA on the AK3063i and AK3066i and across the AK-31 family, and 1×90 A at 1000 VA on the AK3030i. Each current output delivers 450 VA per channel, and in the 3×60 A configuration (3×64 A on the AK-31) it reaches 850 VA per phase.
Is it IEC 61850 compatible?
Yes, both the AK-30 and AK-31 families are compatible with the IEC 61850 standard for digital substation testing.
What is the difference between AK-30 and AK-31?
The AK-30 has 10 output channels and the AK-31 has 13; the AK-31 also offers 4×310 V / 124 VA voltage outputs.
Which relays can it test?
All generations and types — current, voltage, frequency, power, impedance, harmonics and distance — including high-load electromechanical relays.
Does it support end-to-end testing?
Yes, with GPS-triggered synchronisation and PC control over RJ45 Ethernet, plus RIO / XRIO import and export.
How is it protected?
Complete self-protection and alarms against overload, overheating, short circuit, open circuit and wrong wiring.
