Recovering the SF6 of small equipment, combining several partially used bottles into one or emptying the gas left in a larger cart does not require a high-capacity unit: a portable transfer unit with a high-pressure compressor is enough. The AGTU does it from a 34 kg steel enclosure: its 1000:1 oil-less compressor, rated up to 34 bar, transfers up to 2 m³/h of SF6, recovers the gas from equipment up to 69 kV down to 100 mbar (below 1 mbar with the optional XDS module) and filters it to 0.1 micron on every recovery and re-pressurization.
SF6 calculator
Estimate how long the AGTU takes to recover the gas and evacuate your compartment, and how much gas is left inside →AGTU key data

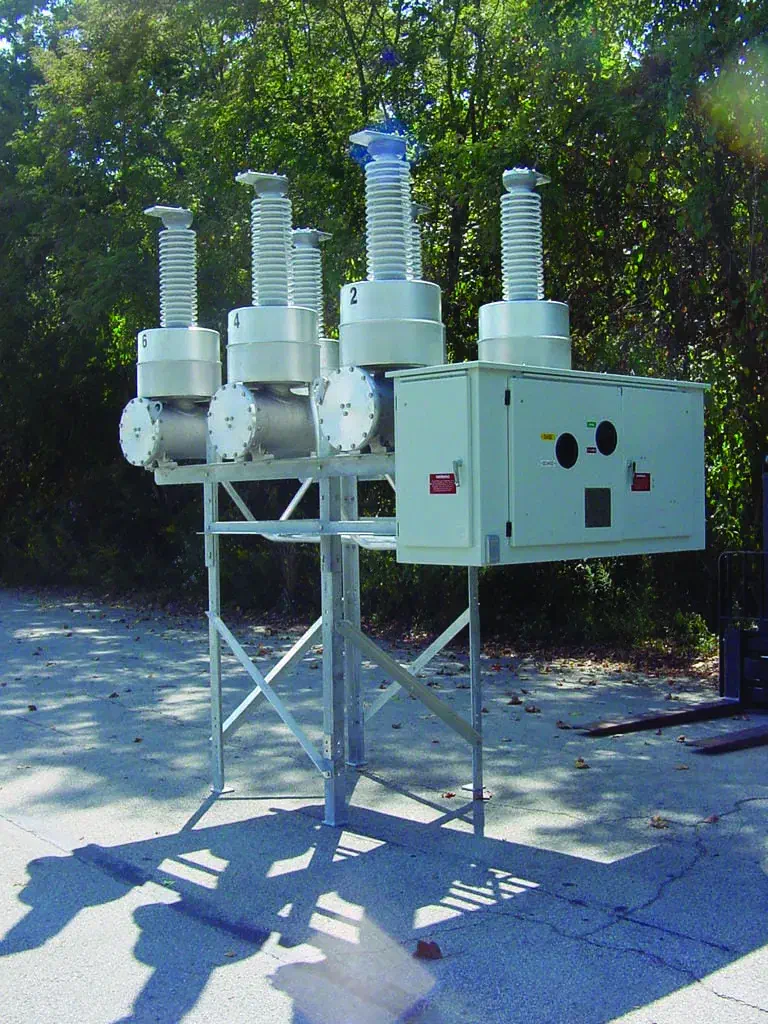

- Application: the AGTU recovers, consolidates and transfers the SF6 of circuit breakers and small-volume gas equipment up to 69 kV, as a low-cost alternative to high-capacity units.
- Flow and recovery: the AGTU transfers up to 2 m³/h (1.2 CFM) of SF6 and recovers the gas down to a residual pressure of 100 mbar, or below 1 mbar with the optional XDS vacuum module.
- Compressor: oil-less and direct-drive, with a 1000:1 compression ratio and up to 34 bar discharge, enough for the AGTU to liquefy SF6 at high ambient temperatures.
- Bottle connection: the AGTU's regulated inlet connects directly to high-pressure bottles without throttling the gas, and the unit works with SF6 tanks, bottles or carts.
- Purification: the AGTU purifies, dries and filters the gas to 0.1 micron on every recovery and re-pressurization, with a colour-change moisture indicator and filters replaced without disconnecting tubing.
- Safety: the AGTU's compressor shuts off automatically when the maximum allowable pressure is reached.
- Format: the AGTU comes in a 510 × 410 × 635 mm, 34 kg steel enclosure, runs on 120 V, 60 Hz or 220 V, 50/60 Hz, single-phase, and ships with 3 m hoses and a power cable.
Advantages
Compact solution for small volumes
Designed for jobs that do not call for a high-capacity unit, the AGTU handles recovery, consolidation of partially used cylinders and gas transfer in a single portable unit.
High pressure without oil
The oil-less, direct-drive compressor, with a 1000:1 compression ratio, reaches up to 34 bar of discharge pressure, enough to liquefy SF6 even at high ambient temperatures.
Regulated inlet for high-pressure bottles
The regulated inlet allows direct connection to high-pressure bottles, with no need to throttle the gas before it enters the unit.
Purification on every cycle
The gas is purified, dried and filtered down to 0.1 microns both during recovery and re-pressurization, with a colour-change moisture indicator to track its condition.
Simple maintenance
Filters are replaced without disconnecting any tubing or using special tools, and the compressor shuts down automatically once the maximum allowable pressure is reached.
Applications
- Recovery of SF6 gas to an optional auxiliary storage tank.
- Pressure-regulated recharging of SF6 gas to switchgear.
- Consolidation of partially used storage cylinders.
- Purification of the gas: removes particles, moisture and decomposition products.
About the product

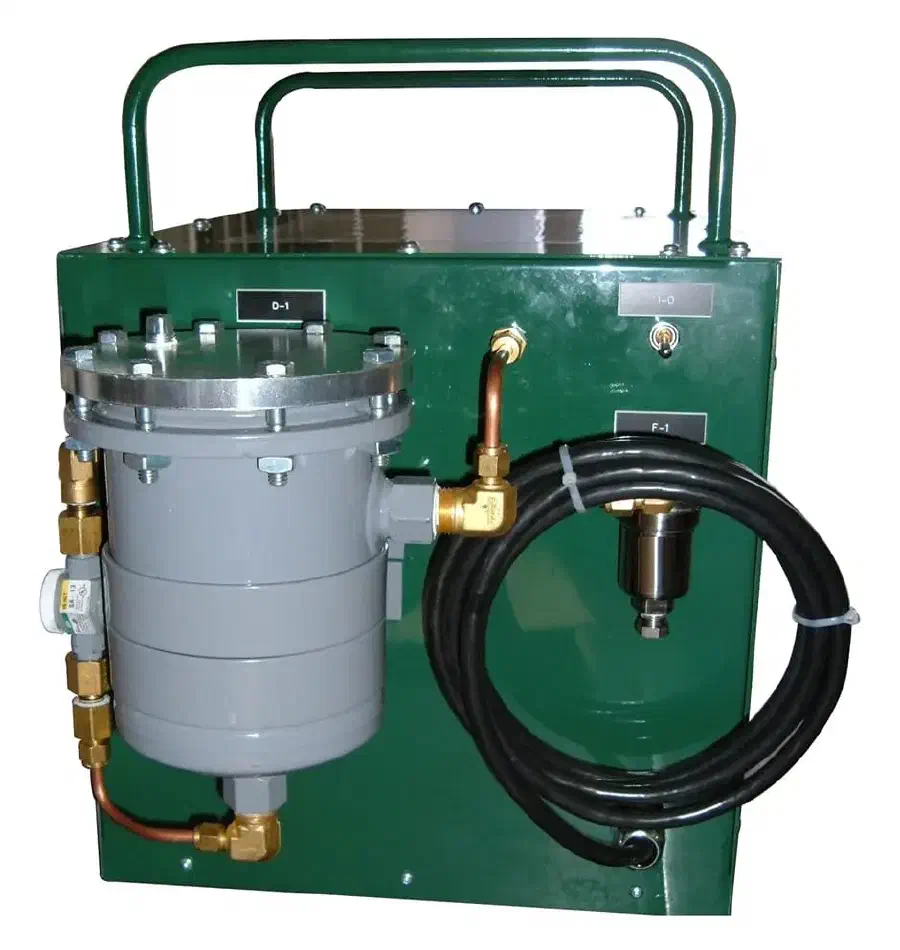

The unit is housed in a rugged steel enclosure, suited to working directly with SF6 tanks, bottles or carts. It recovers gas from the equipment down to a residual pressure of 100 mbar, or below 1 mbar with the optional XDS vacuum module, then transfers it at a rate of up to 2 m³/h. It runs on 120 V or 220 V single-phase power and ships with 3 m hoses and a power cable.
Available accessories: XDS vacuum module for recovery below 1 mbar, auxiliary external storage tank, longer hoses and special supply voltages on request.
Technical specifications
| Designed for | Circuit breakers and SF6 equipment up to 69 kV |
| Transfer rate | Up to 1.2 CFM (2 m³/h) |
| Recovery | Down to 100 mbar; optionally below 1 mbar with XDS module |
| Compressor | Oil-less, direct-drive, 1000:1; up to 34 bar |
| Filtration | 0.1 micron on every recovery and re-pressurization cycle |
| Power supply | 120 V AC, 60 Hz / 220 V AC, 50/60 Hz, single-phase |
| Dimensions (H × W × D) | 510 × 410 × 635 mm |
| Weight | 34 kg |
| Inlet and safety | Regulated inlet for high-pressure bottles; automatic shut-off at maximum allowable pressure |
| Construction and supply | Steel enclosure; colour-change moisture indicator; 3 m hoses and power cable |
Frequently asked questions
Can the AGTU combine bottles or empty the gas left in a larger recovery cart?
Yes. The AGTU consolidates several partially used SF6 bottles into one and recovers the remaining gas from higher-capacity carts, at up to 2 m³/h and with an oil-less compressor rated up to 34 bar.
How much does the AGTU weigh and what is included for field work?
The AGTU weighs 34 kg and measures 510 × 410 × 635 mm, in a rugged steel enclosure; it ships with 3 m hoses and a power cable for 120 V or 220 V single-phase.
What size of equipment is the AGTU designed for?
Circuit breakers and small-volume SF6 equipment up to 69 kV; it is the low-cost alternative to high-capacity units.
What vacuum level does it reach during recovery?
Standard recovery reaches down to 100 mbar; with the optional XDS module, residual pressure drops below 1 mbar.
Can it connect directly to high-pressure bottles?
Yes. The regulated inlet allows direct connection to high-pressure bottles with no need to throttle the gas.
How often do the filters need changing?
Filters are replaced when the moisture indicator changes colour; the design allows this without disconnecting tubing or using special tools.
What power supply does it need?
It runs on 120 V or 220 V single-phase, at 50 or 60 Hz depending on the installation.
