APQM Series: power quality analyzers

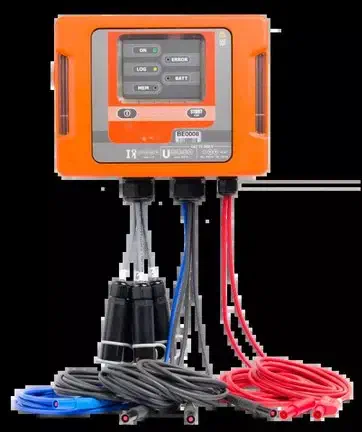

APQM Series analysers are portable and panel-mounted power quality instruments that record harmonics, flicker, dips, swells and interruptions on LV and MV networks. Use them to audit supply quality against EN 50160 and to trace the cause of nuisance trips, overheating and misbehaving sensitive loads.
What do they measure and how?
An APQM samples all three phase voltages and currents plus neutral simultaneously, computes parameters to IEC 61000-4-30 — harmonics to IEC 61000-4-7, flicker to IEC 61000-4-15 — and stores time-stamped events with waveforms. Recorded data downloads to PC software for compliance reporting.
Choosing the right model
- General logging campaigns: APQM-700.
- Deeper event and harmonic analysis: APQM-702/703.
- EN 50160 supply-quality audits: APQM-707.
- Permanent panel installation: APQM-710/711.
Tell us the network voltage, installation type and campaign length at [email protected] and we will point you to the right unit.
Applications
- Supply-quality audits at substations and industrial intakes.
- Harmonic surveys around drives, rectifiers and other non-linear loads.
- Verifying reactive-power compensation and sizing harmonic filters.
Applicable standards
- IEC 61000-4-30: power quality measurement methods (Class A / Class S).
- IEC 61000-4-7 and IEC 61000-4-15: harmonics and flicker.
- EN 50160: voltage quality limits in public networks.
Frequently asked questions
What is the difference between Class A and Class S?
IEC 61000-4-30 Class A fixes the algorithms and accuracy needed for contractual or regulatory measurements that must match between instruments; Class S allows wider tolerances and suits statistical surveys and general troubleshooting.
How long should a measurement campaign run?
EN 50160 conformity is normally assessed over at least one full week of 10-minute aggregated values, so that weekday and weekend load cycles are both captured.
Do APQM units also meter energy?
Yes. Besides quality parameters they record active and reactive energy per phase, which is useful for checking billing and allocating internal consumption.
